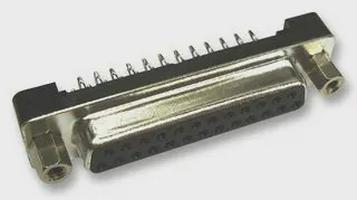

SOCKET D PCB P/FIT 37WAY; No. of Contacts:37Contacts; Gender:Receptacle; Contact Termination Type:Press Fit; D Sub Shell Size:DC; Product Range:-; Connector Body Material:Steel Body; Contact Material:Phosphor Bronze; Contact Plating:Gold Plated Contacts; Body Plating:Tin; Connector Mounting:Through Hole Mount; Contact Resistance:20mohm; Contact Termination:Solder; Current Rating:5A; D Sub Connector Type:Standard; DC Current Max:5A; External Depth:6.1mm; External Length / Height:7.9mm; External Width:55.42mm; Flammability Rating:UL94V-0; Insulation Resistance:1000Mohm; Material:Steel; Operating Temperature Max:125蚓; Operating Temperature Min:-55蚓; Termination Method:Press Fit; Voltage Rating VAC:300V; Withstand Voltage:1000V; Working Voltage:300V
